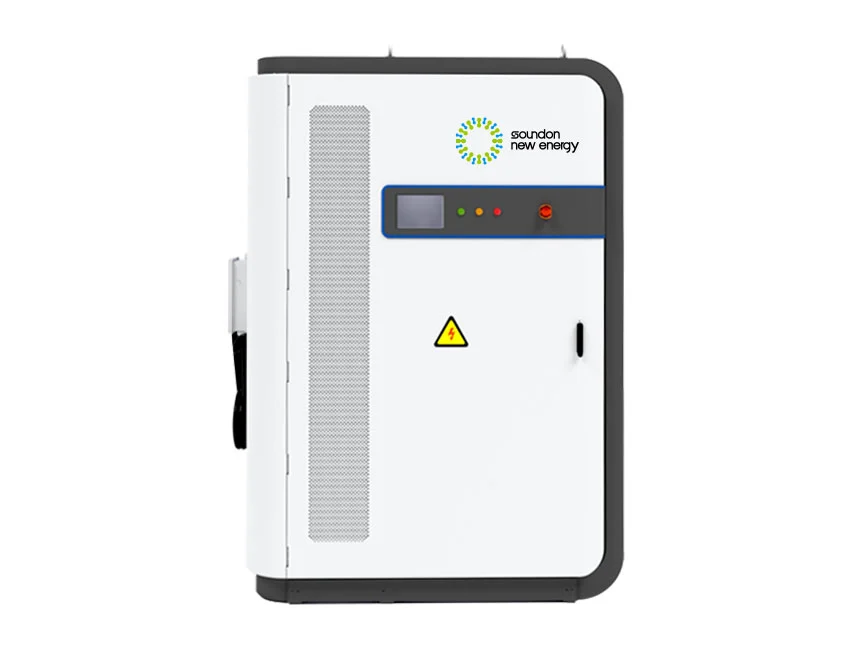

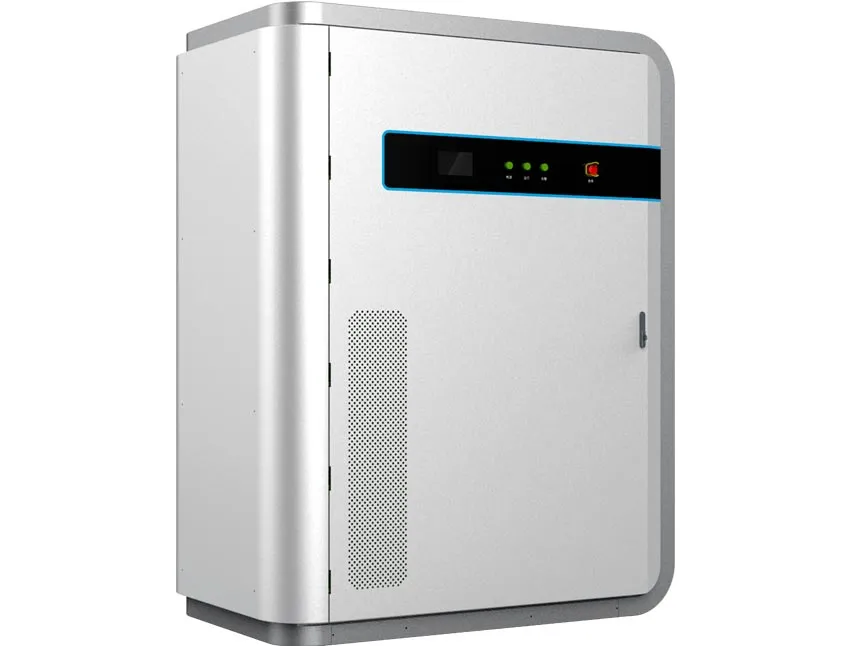

The 258kWh liquid cooled energy storage system from Soundon New Energy Technology is all in one energy storage system integrated with an integrated battery, PCS, EMS, fire protection, electric energy measurement, cloud operation and maintenance platform, and liquid cooling system.
The rated power is 120kW. Nominal voltage 380Vac and consists of 4 standard modules in series to form a battery box with a voltage of 153.6V and a capacity of 280Ah. It is specially developed for industrial and commercial fields, which can be plug-and-play, and installed.
| Rated Capacity | 258 kWh |
| Rated Power | 100 kW |
| Nominal Voltage | 380 Vac / Three-phase Four-wire |
| Max Apparent Power | 110 kW |
| Rated Output Frequency | 50 Hz |
| Unbalanced Load | 100% |
| IP Protection Level | IP55 |
| Cooling Method | Liquid Cooling |
| Noise | <65 db(1m From the System) |
| Size | W1578*D1400*H2132mm |
| Communication Interface | Ethernet |
| Communication Protocol | IEC60870-5-104, Modbus tcp, IEC61850-9 |
High integration: Integrated Design, Plug and Play, Easy Installation.
Efficient and Flexible: Modular Design, Support for Multiple Parallel, Applicable to Various Working Conditions, Flexible Load Configuration
iBMS: The New iBMS Realizes the Refined and Personalized
Cloud Security Warning: Full-dimensional Security Warning Function, 7*24 Hours to Ensure the Safety of Battery Applications

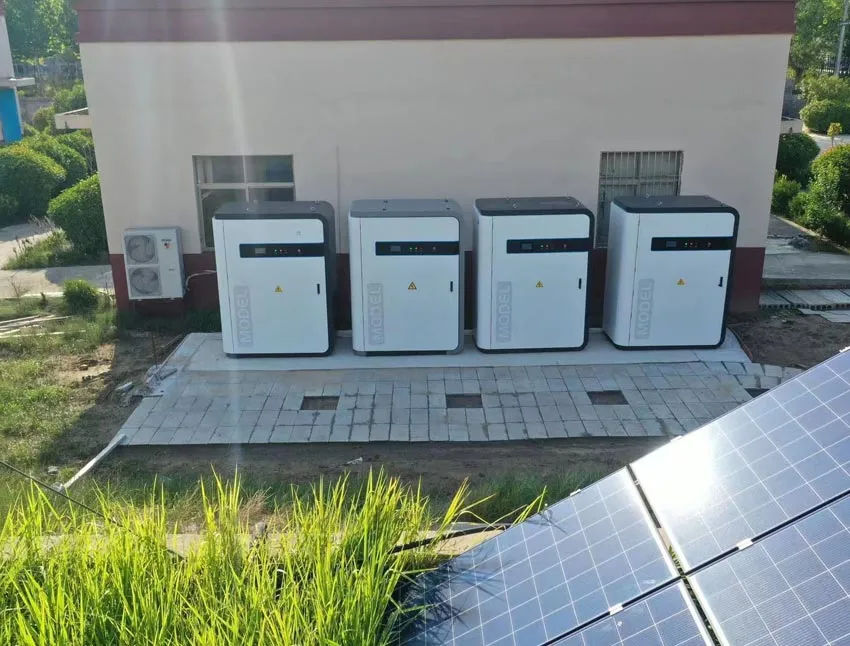

Soundon's C&I storage Energy are used to meet peak power demands and high power switching in a short time. The peak power supplies are power plants that can be switched on and off for a short time in the traditional structure.
